Condair DA 160 - 440

Desiccant-dryer

Compact and portable adsorption dehumidifiers in a durable stainless steel housing. Suitable for smaller spaces, such as laboratories, basements, archives and for construction drying.

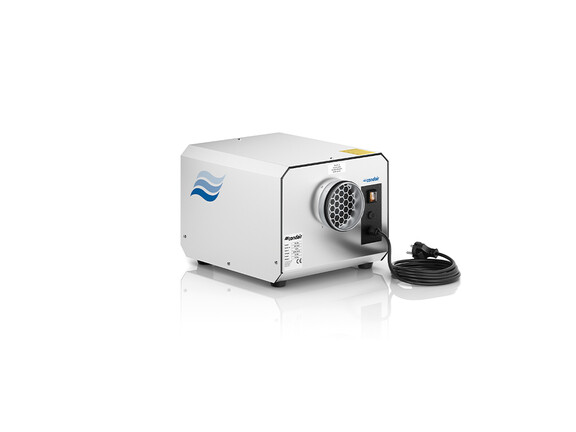

Condair DA 160 - 440 dehumidifier

Top of page Benefits Product details Downloads FAQs Testimonials

High-performance desiccant rotor

The desiccant rotor consists of a honeycomb structure made of fibreglass, coated with highly hygroscopic silica gel. The flutes provide an enormous internal surface area, enabling efficient and effective moisture transfer. The rotor material is silicone-free, non-flammable and -respirable and the rotors are largely maintenance-free.

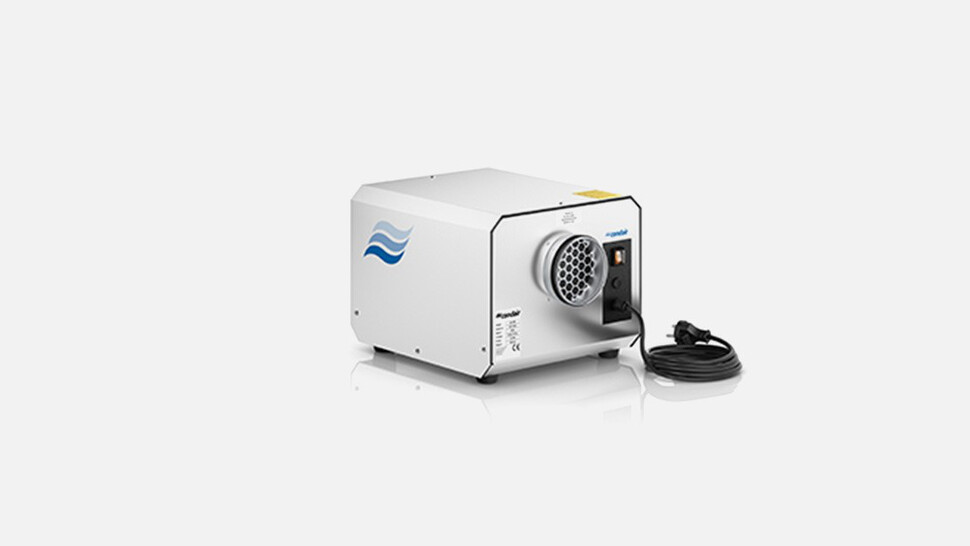

Compact industrial design

Portable design with a corrosion-resistant AISI 304 stainless steel housing in a 3-hole configuration. Equipped with a combined air inlet and separate dry air and wet air outlets with circular spigot duct connections for fast and easy installation. The units come with a ready-fitted power cable, allowing immediate connection to a standard 230 V outlet for mobile or stationary use.

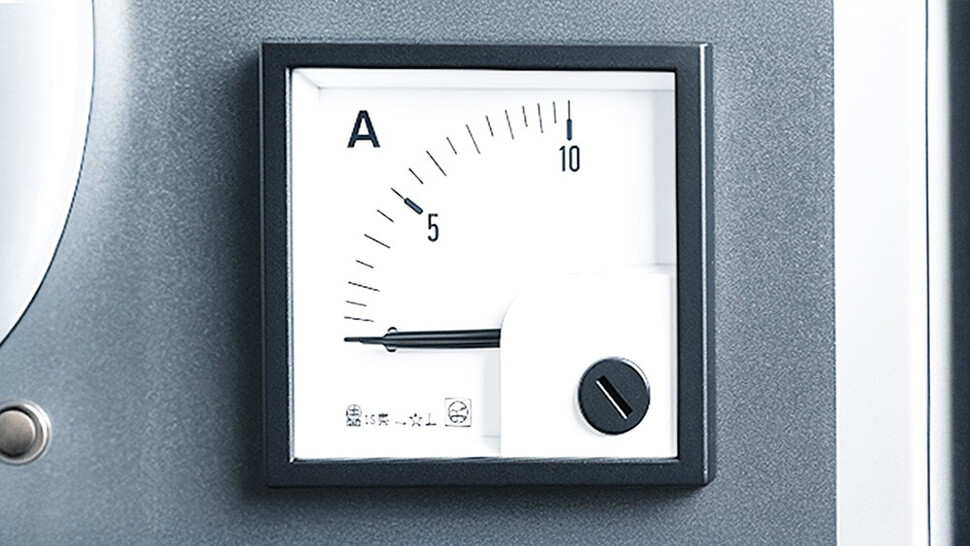

PTC-reactivation heater

The Condair DA 160-440 uses a PTC reactivation heater, whose self-regulating characteristics prevent overheating by adjusting internal resistance and electrical current based on its temperature. This ensures safe, reliable rotor regeneration and improves operational reliability. The integrated ampere meter simplifies commissioning and monitoring, enabling quick and accurate verification of heater performance.

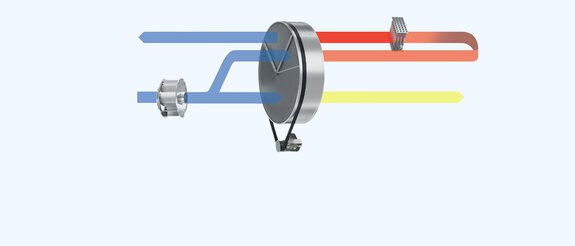

Operating Principle

The 3-hole design utilizes two airflows for dehumidification and regeneration. A third rotor section uses residual heat to preheat the reactivation air, thus increasing efficiency.

Humid air

Regeneration air

Process air

Dry air

Downloads

Installation & operations manual

Condair DA 160 - 440 Installation and Operation Manual EN document · 563,0 KB

See all downloads

Frequently asked questions

How should the Condair DA 160–440 portable units be installed?

The Condair DA 160–440 units are designed to operate exclusively in non-pressure-neutral scenarios. Installation requires either directing the dried process air into a room or chamber, creating positive pressure, or placing the dehumidifier directly in the space to be dehumidified and venting the wet air outside. Venting wet air generates a slight negative pressure in the room, which draws in fresh air from outside or adjacent rooms. This effect can be beneficial, for example in basement spaces, as it helps prevent odours from spreading.

What are the drying capacities and airflow rates of the Condair DA 160–440 units?

The Condair DA 160-440 series offers the following capacities, measured at 20 °C and 60 % relative humidity:
DA 160: Drying capacity 0.6 kg/h, process air 160 m³/h, regeneration air 40 m³/h
DA 250: Drying capacity 1.1 kg/h, process air 250 m³/h, regeneration air 50 m³/h
DA 440: Drying capacity 1.4 kg/h, process air 440 m³/h, regeneration air 100 m³/h
All units function efficiently across a wide temperature and humidity range, including negative temperatures, as long as the dehumidifier is placed in an environment with similar ambient temperatures. The high-performance silica gel rotor ensure effective and efficient dehumidification even at low temperatures.

What operating modes and control options are available on the Condair DA 160–440?

The Condair DA 160-440 series are designed for more simple applications. They can operate manually at full capacity by setting the mode switch to Manual, or they can be connected to an external hygrostat or other electrical humidity controller. In this case, setting the switch to Auto allows the unit to start and stop automatically based on the humidity level. Condair offers a wide range of suitable external hygrostats and humidity controllers for flexible operation.
