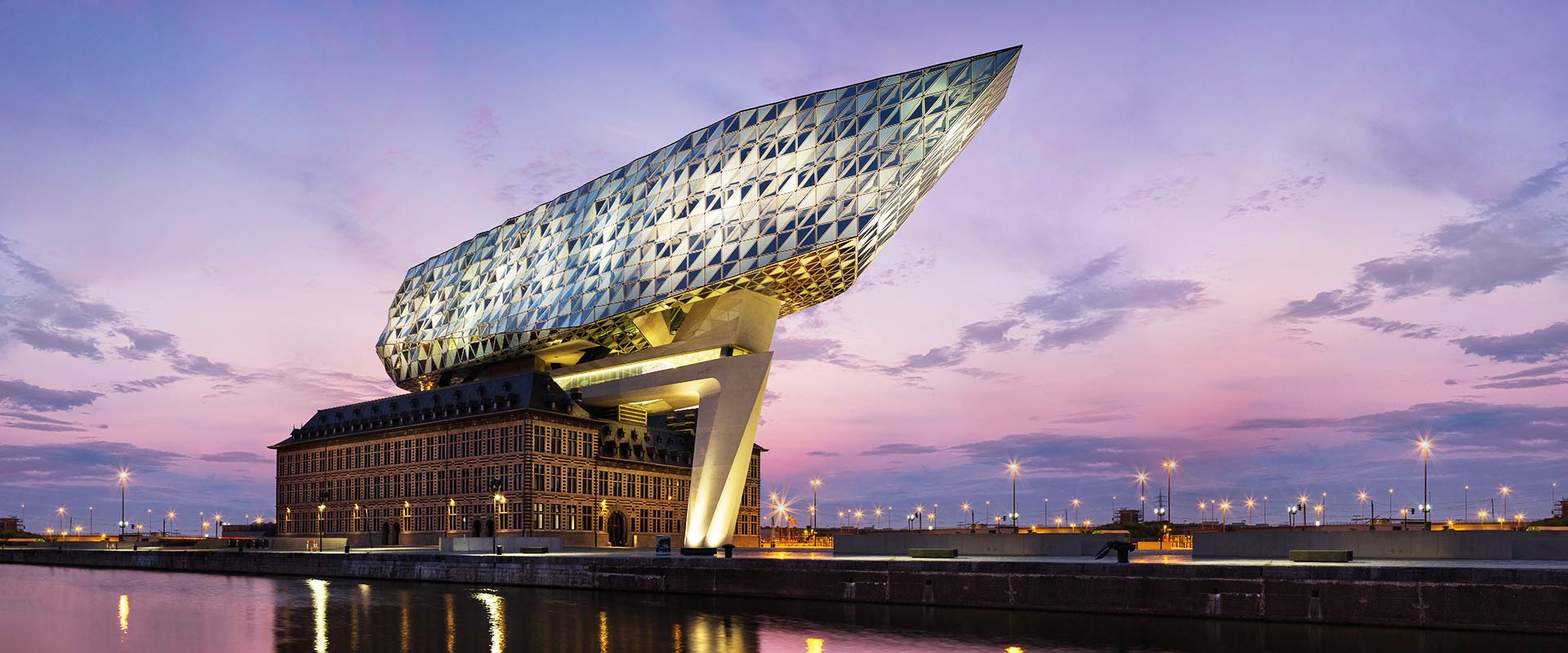

Havenhuis, Antwerpen

The Havenhuis has been the seat of the Antwerp Port Authority since 2016. It was designed by the British-Iraqi celebrity architect Zaha Hadid and built directly above a listed fire brigade building dating from 1922.

The shape of the building is intended to symbolize both the city of Antwerp as the “city of diamonds” and the sea trade through the visual reference to the shape of a ship. In the column on the outside there is a panoramic elevator that offers a unique view over the port of Antwerp. Condair RS steam humidifiers ensure a pleasant, healthy indoor climate.

Further information on the Condair RS

---

Flexible choice of water

A resistance heating system works independently of the conductivity of the humidifying water.
For this reason, Condair RS steam humidifiers are suitable for use both with demineralized water and drinking water.
When using demineralized water, maintenance is reduced to periodic function checks.

If steam humidifiers are to be operated with drinking water, then Condair RS steam humidifiers should
always be your first choice, because the patented limescale management system ensures a high degree
of reliability even when the water contains limestone.

A technical innovation that solves the limescale problem

Patented limescale management removes the separated minerals
from the steam cylinder during operation and automatically conveys them into the designated
limescale collecting vessel. Limescale deposits are thus continuously removed from the steam cylinder.

The pieces of limescale are collected in an
external limescale collecting vessel and can easily be emptied from there. Maintenance work is significantly reduced
and operational reliability is maximized. The patented limescale management system ensures
reduced maintenance times and long life of RS steam humidifiers.

Touch Controller for precise control

The Condair Touch Controller allows viewing of all unit and process data.
Operating data can be called up in real time, and there is a comprehensive data history. The electronic control system
allows the steam output to be varied continuously between 0 and 100%; this means
accurate control and management of the steam delivery rate.

Perfect connectivity

The RS series steam humidifier includes an interface for connection to current BMS systems
(Modbus and BACnet) as standard.

System layout
Resistive steam humidifier

---
