JetSpray gives printing perfection at John Watson

When John Watson & Co, the oldest printing company in Scotland, was seeking to enhance its process control by improving the humidity of its print room, it contacted Condair, who installed the JetSpray air and water atomising humidifier, developed especially for the printing industry.

Paper is a hygroscopic material that is very susceptible to changes in relative humidity (RH). For optimum printing and paper storage conditions, the humidity should be kept between 40-60%RH. The heat generated by print machinery and heaters in enclosed conditions can cause the air to dry and, subsequently, the paper. In winter, RH can fall as low as 15-20%RH resulting in a build-up of static and printing issues such as misregister, web breaks, paper curl and paper cracking when folded. By humidifying the atmosphere around printing presses, reel-stand areas and paper stores, problems like these can be dramatically reduced.

When paper loses moisture, ink will not adhere properly

Chris Fyfe, Quality Assurance Manager at John Watson, explained how Condair met his company’s needs: “When paper loses moisture, ink will not adhere properly, which could cause a problem for our printing company whose reputation for quality is high. Not only has the JetSpray been proven in our industry, it is also uncomplicated, energy efficient and extremely hygienic in operation. Due to the conditions in our print room, the humidifier has been running 99% of the day since installation, keeping RH at a perfect 50%.”

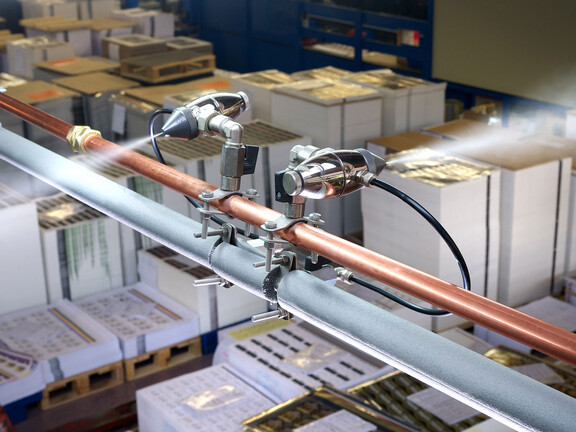

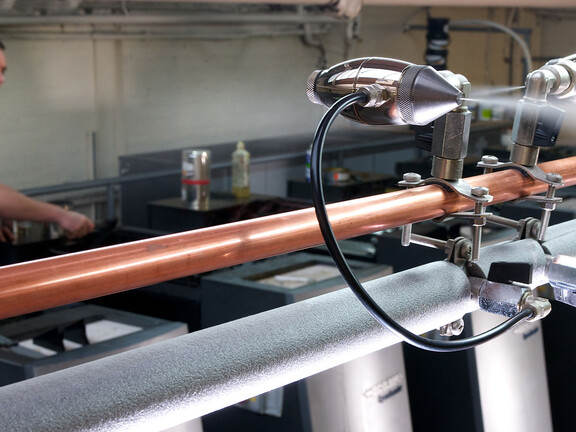

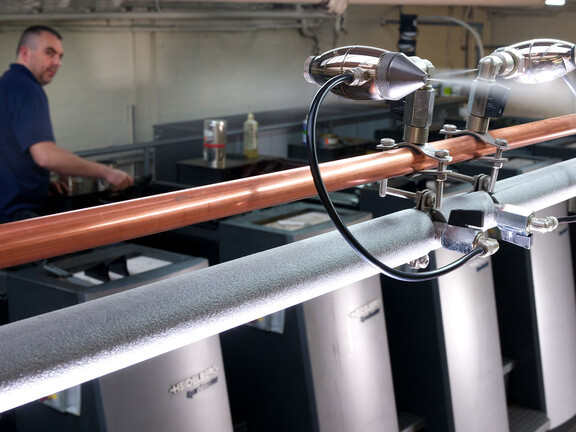

The JetSpray controls humidity to ±2.5%RH and was designed specifically for the printing industry as it needs minimal maintenance, has low running costs and is very hygienic. It consists of a control panel feeding compressed air and water to rows of nozzles. The nozzle design ensures that water can only be introduced when compressed air is flowing through the system, guaranteeing drip-free sprays. The spray released from the nozzles has a tiny droplet size of just 7.5μm, which rapidly evaporates in the air, raising its humidity.

A PureFlo Ag+ silver ion dosing system is incorporated on the incoming water supply to combat microbial build-up. Silver is a powerful antibacterial element and provides a strong residual effect throughout the water pipe work. In additional to this, automatic flush and purge cycles prevent water from remaining in the system, further controlling microbial growth and ensuring hygienic operation. These features have helped the JetSpray achieve the independently verified VDI6022 hygiene standard.

The atomising humidifier uses 90% less energy than electric steam humidifiers. Not only are there considerable cost savings but, for a system producing 100kg of moisture per hour, this equates to a reduction in CO2 emissions of around 260 tonnes over five years.

The JetSpray is very easy to install, can run on mains, demineralised or softened water and due to a self-clean pin in the nozzle, requires little maintenance. The internal components of the JetSpray control panel are easily accessible with all electronic elements being enclosed in a separate compartment above the water pipes.

Chris Fyfe, Quality Assurance Manager at John Watson

"Not only has the JetSpray been proven in our industry, it is also uncomplicated, energy efficient and extremely hygienic in operation. Due to the conditions in our print room, the humidifier has been running 99% of the day since installation, keeping RH at a perfect 50%."

Condair in action

Projects and references

Harrier Group, UK

Harrier Group, a leading UK digital printing firm, has invested in four Condair RS restive steam humidifiers to maintain the perfect production environment in its newly-designed, high-tech print room.

Harrier Group, UK

Fujifilm Imaging and Innovation Centre

A Condair JetSpray humidification system is maintaining an ideal 40-60%RH (relative humidity) in the Fujifilm Imaging and Innovation Centre in Bradford to provide the optimum atmospheric conditions for their paper storage and printing areas.

Fujifilm, UK

Polestar Group

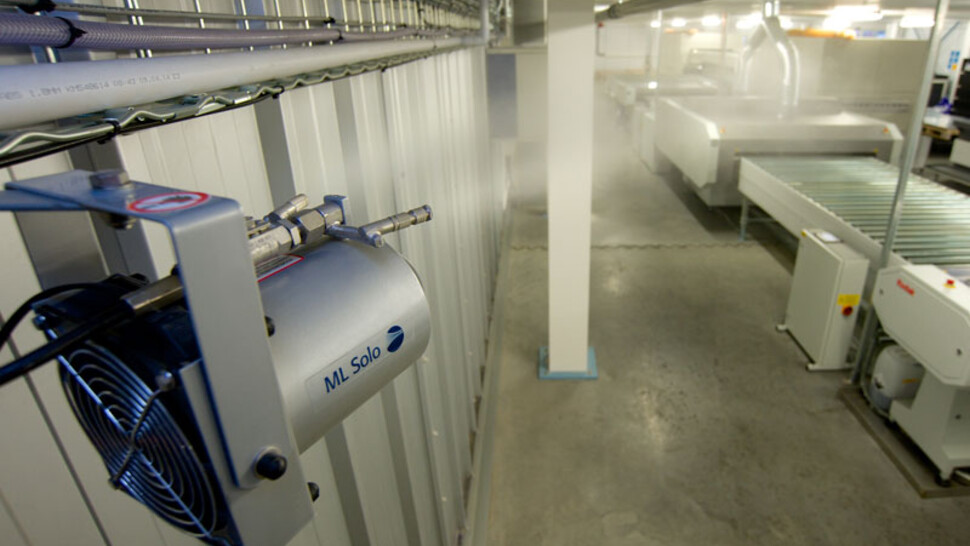

A Condair ML Solo high pressure humidification system has been installed in the litho platemaking area at Polestar print company's award-winning plant in Sheffield. Designed to suppress and disperse electrostatic charges when protective film is removed from the plates, Condair's low-energy humidifier maintains a relative humidity of 45% in the area. The project was carried out by Cambridgeshire-based HVAC and process engineering specialist, Arcade.Polestar Sheffield produces 2.5 million high-quality catalogues, magazines, brochures and newspaper supplements every day. Part of Polestar Group, the company produces many well-known titles including Cosmopolitan, Radio Times, Woman's Own, Country Life and many Sunday newspaper supplements.With a strong focus on printing excellence and productivity at Polestar, the new humidifier installation provides an effective solution to the problem of electrostatic charge generation when protective paper is removed from the litho plates. By reducing and dissipating the electrostatic charge, the paper and plates are easier to handle, it prevents the attraction of dust and reduces the risk of spark generation. The Condair ML humidifier delivers ultrafine sprays directly into the air, which rapidly evaporate to maintain a relative humidity of 45%RH, the level required to counter the effects of static electricity.

Polestar, Sheffield UK

Gilmour and Dean

Gilmour and Dean is a premier supplier of quality added value labels to the Spirits Bottling Industry, with annual sales approaching one billion labels for customers' products distributed and consumed worldwide. Gilmour Dean is also acknowledge as a source of quality Tube-Wraps, Box-Wraps, Swing Tags, Collarettes and other related promotional print.Since March 2011 the company has been part of the Eurostampa Group, a supplier of high quality labels to owners of prestige consumer brands in over 30 countries worldwidA Draabe high pressure humidification system is helping to maintain the perfect air condition for quality printing at Gilmour and Dean in Glasgow.

Hobbs The Printers Ltd

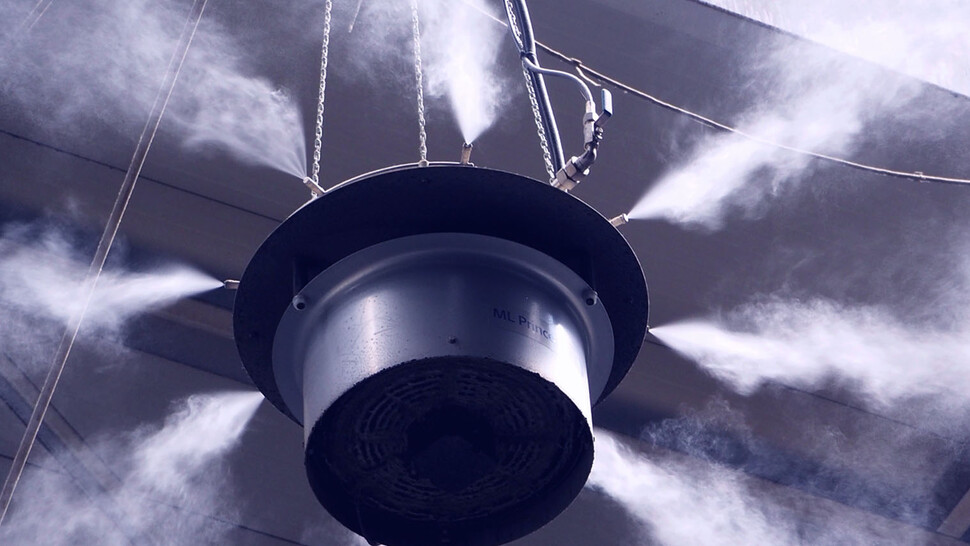

Hobbs The Printers is a world leader in book printing, specialising in the production of journals, magazines, newsletters, brochures and loose-leaf publications. Founded in 1884 by William Hobbs, the company now employs 175 people and offers a comprehensive range of printing, finishing and fulfillment services.ML Princess high pressure humidifiers from Condair are helping to maintain an ideal air humidity for optimum print productivity.
